Xcellent

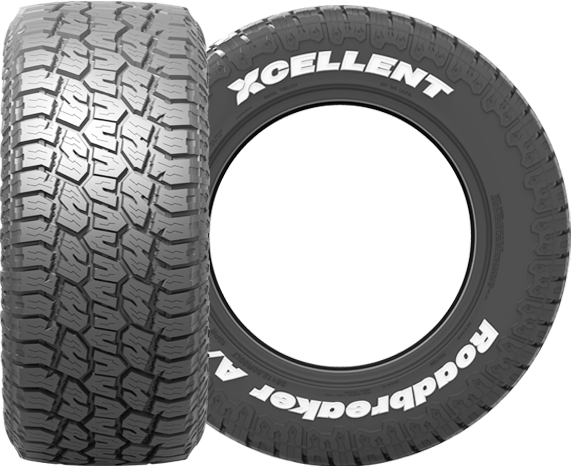

Roadbreaker AT

The Xcellent Roadbreaker A/T is designed for 4x4 enthusiasts to conquer extreme traction wherever you go. Ranging from 15 to 22 inch rim diameters.Roadbreaker A/T is suitable for 4WDs and pick-up trucks requiring outstanding wet performance,durability and long service life.

No.	Item No.	Size	Ply Rating	L / S	Sidewall	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	Sidewall	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
1	EA0005	31x10.50R15LT	6PR/LR C	109R	RWL	15.5	50	8.5J	10.7	30.6	2270
2	EA0006	35x12.50R15LT	6PR/LR C	113R	RWL	15.5	35	10.0J	12.5	34.5	2535
3	EA0007	LT235/85R16	10PR/LR E	120/116S	RWL	15.5	80	6.5J	9.4	31.9	3042/2778
4	EA0008	LT225/75R16	10PR/LR E	115/112R	RWL	15.5	80	6.0J	8.7	29.4	2679/2469
5	EA0009	LT245/75R16	10PR/LR E	120/116R	RWL	15.5	80	7.0J	9.8	30.6	3042/2778
6	EA0010	LT265/75R16	10PR/LR E	123/120R	RWL	15.5	80	7.5J	10.6	31.7	3415/3085
7	EA0011	LT285/75R16	10PR/LR E	126/123R	RWL	15.5	80	8.0J	11.5	32.8	3750/3417
8	EA0012	LT245/75R17	10PR/LR E	121/118R	RWL	15.5	80	7.0J	9.6	31.7	3195/2910
9	EA0013	LT265/70R17	10PR/LR E	121/118R	RWL	15.5	80	8.0J	10.7	31.9	3195/2910
10	EA0014	LT285/70R17	8PR/LR D	121/118S	RWL	15.5	80	8.5J	11.3	32.9	3195/2910
11	EA0015	LT305/65R17	10PR/LR E	121/118R	RWL	15.5	65	9.0J	12.2	32.6	3195/2910
12	EA0016	35x12.50R17LT	10PR/LR E	121R	RWL	15.5	65	10.0J	12.5	34.5	3195
13	EA0001	P225/65R17	4PR/LR D	100T	RWL	12.6	51	6.5J	8.9	28.5	1874
14	EA0002	P265/70R17	4PR/LR D	113T	RWL	12.6	51	8.0J	10.6	31.7	2535
15	EA0017	LT275/65R18	10PR/LR E	123/120S	RWL	15.5	80	8.0J	11.0	32.1	3415/3085
16	EA0018	LT275/70R18	10PR/LR E	125/122S	RWL	15.5	80	8.0J	10.8	33.3	3640/3305
17	EA0019	35x12.50R18LT	10PR/LR E	123R	RWL	15.5	65	10.0J	12.5	34.5	3415
18	EA0003	P275/65R18	4PR/LR D	114T	RWL	12.6	51	8.0J	11.1	32.0	2601
19	EA0020	LT275/65R20	10PR/LR E	126/123S	RWL	15.5	80	8.0J	11.0	34.0	3750/3415
20	EA0021	LT305/55R20	10PR/LR E	121/118R	RWL	15.5	65	9.5J	11.9	33.5	3195/2910
21	EA0022	35x12.50R20LT	10PR/LR E	121R	RWL	15.5	65	10.0J	12.5	34.5	3195
22	EA0023	35x12.50R20LT	12PR/LR F	125R	RWL	15.5	80	10.0J	12.5	34.5	3640
23	EA0004	P275/55R20	4PR/LR D	111S	RWL	12.6	50	8.5J	11.1	31.8	2403
24	EA0024	35x12.50R22LT	12PR/LR F	121R	RWL	15.5	65	10.0J	12.8	35.0	3195

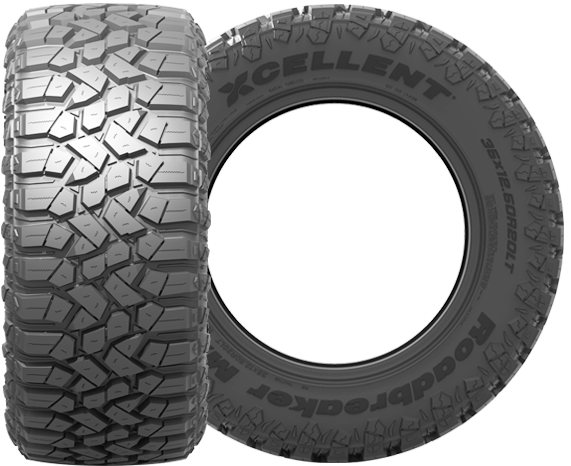

Roadbreaker M/T

Designed to challenge the toughest roads, the Xcellent Roadbreaker M/T features robust Robotic Arm traction blocks, extra-deep grooves, notched and scalloped shoulder lugs to enhance your bold, aggressive off-road experience. Heavy-duty with full 3-ply construction across all sizes, with increased load capacity suitable for 3/4 and 1-ton trucks on rugged terrains.

No.	Item No.	Size	Ply Rating	L / S	Sidewall	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	Sidewall	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
1	EM0006	33x12.50R17LT	10PR/LR E	120Q	RBL	19.5	65	10.0J	12.5	32.8	3085
2	EM0007	35x12.50R17LT	10PR/LR E	121Q	RBL	19.5	65	10.0J	12.5	34.5	3195
3	EM0012	33x12.50R18LT	10PR/LR E	118Q	RBL	19.5	65	10.0J	12.7	32.8	2910
4	EM0014	35x12.50R18LT	10PR/LR E	123Q	RBL	19.5	65	10.0J	12.5	34.5	3415
5	EM0016	33x12.50R20LT	10PR/LR E	114Q	RBL	19.5	65	10.0J	12.7	32.7	2600
6	EM0020	35x12.50R20LT	10PR/LR E	121Q	RBL	19.5	65	10.0J	12.6	34.7	3195
7	EM0022	33x12.50R22LT	10PR/LR E	109Q	RBL	19.5	65	10.0J	12.5	32.8	2270
8	EM0024	35x12.50R22LT	10PR/LR E	117Q	RBL	19.5	65	10.0J	12.5	34.8	2835
9	EM0028	35x13.50R24LT	10PR/LR E	112Q	RBL	19.5	65	11.0J	13.6	34.7	2910
10	EM0030	40x15.50R24LT	10PR/LR E	128Q	RBL	19.5	65	12.0J	15.4	39.8	3970

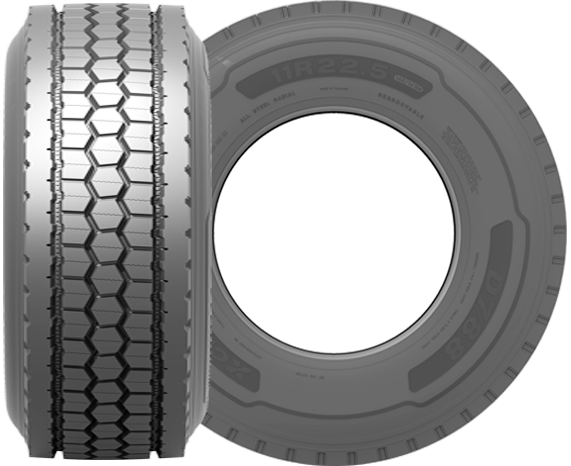

D788

Close Shoulder Drive

The Xcellent D788 is a close-shoulder drive tire designed for long-haul and regional trucks and buses,especially under mixed-terrain services. Strong blocks and deep grooves provide strong traction while maintaining an even wear in long-haul operations.

No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Single	Dual
1	ED0001	295/75R22.5	14PR/LR G	144/141M	26.5	110	9.0J	12	40	6175	5675
2	ED0002	295/75R22.5	16PR/LR H	146/143M	26.5	120	9.0J	12	40	6610	6005
3	ED0003	11R22.5	14PR/LR G	144/142M	26.5	105	8.25J	11	41	6175	5840
4	ED0004	11R22.5	16PR/LR H	146/143M	26.5	120	8.25J	11	41	6610	6005
5	ED0005	11R24.5	14PR/LR G	146/143M	26.5	105	8.25J	11	43	6610	6005
6	ED0006	11R24.5	16PR/LR H	149/146M	26.5	120	8.25J	11	43	7160	6610

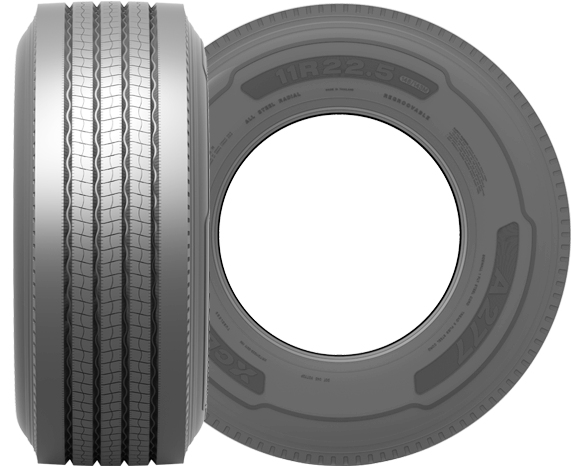

A277

All Position

The Xcellent A277 is a all-position tire with deep tread depth for both long-haul and regional applications. High quality construction coupled with a solid shoulder and serrated center ribs provides enhanced traction and durability, better handling and stability, and heavy-load capacity.

No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Single	Dual
1	EAP001	295/75R22.5	14PR/LR G	144/141M	19.0	110	9.0J	12	40	6175	5675
2	EAP002	295/75R22.5	16PR/LR H	146/143M	19.0	120	9.0J	12	40	6610	6005
3	EAP003	11R22.5	14PR/LR G	144/142M	19.0	105	8.25J	11	41	6175	5840
4	EAP004	11R22.5	16PR/LR H	146/143M	19.0	120	8.25J	11	41	6610	6005
5	EAP005	11R24.5	14PR/LR G	146/143M	19.0	105	8.25J	11	43	6610	6005
6	EAP006	11R24.5	16PR/LR H	149/146M	19.0	120	8.25J	11	43	7160	6610

T199

Trailer

The Xcellent T199 is a long-haul regional trailer tire suitable for spread and multi-axle trailers. Optimized tread depth improves resistance to wear and reduce stread squirm. Reinforced sipes promote traction and wide solid shoulders help to resist scrubbing. Edged blocks help enhance grip and heat dissipation efficiency as well as rolling resistance.

No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Single	Dual
1	ET0001	295/75R22.5	14PR/LR G	144/141M	13.0	110	9.0J	12	40	6175	5675
2	ET0002	295/75R22.5	16PR/LR H	146/143M	13.0	120	9.0J	12	40	6610	6005
3	ET0003	11R22.5	14PR/LR G	144/142M	13.0	105	8.25J	11	41	6175	5840
4	ET0004	11R22.5	16PR/LR H	146/143M	13.0	120	8.25J	11	41	6610	6005

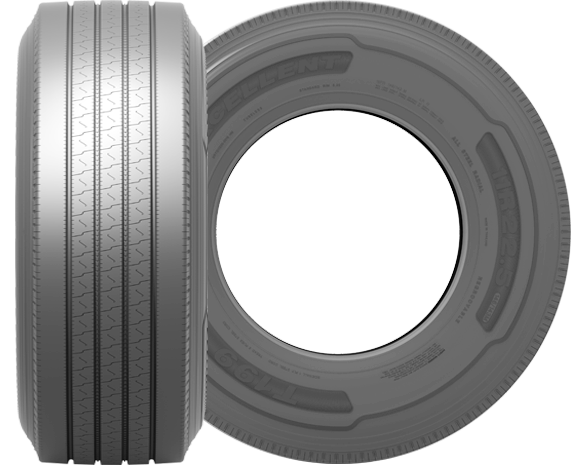

S566

Premium Steer

The Xcellent S566 is a long-haul regional steer tire suitable for pick-up and delivery trucks. The pattern with five ribs and geometrical blocks offers superb steering and handling performance, with wide solid shoulders providing even load distribution, and enhanced sipes and wide grooves delivering excellent wet and dry performance.

No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Single	Dual
1	ES0001	295/75R22.5	14PR/LR G	144/141M	19.0	110	9.0J	12	40	6175	5675
2	ES0002	295/75R22.5	16PR/LR H	144/141M	19.0	120	9.0J	12	40	6610	6005

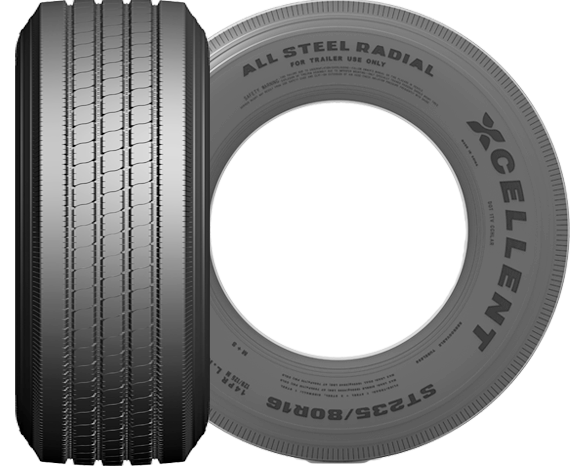

Assure ST+

All-Steel ST

The Xcellent Assure ST+ is all-steel special trailer tire with enhanced compound and structure made for high load capacity on trailer axles. The heavy duty all-steel construction delivers superior strength and durability while providing enhanced traction

No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Single	Dual
1	ES0001	ST235/80R16	14PR/LR G	129/125M	12.0	110	6.5J	9.3	30.8	4080	3640
2	ES0002	ST235/85R16	14PR/LR G	132/127M	12.0	110	6.5J	9.3	31.7	4400	3860
3	ES0003	ST225/75R15	14PR/LR G	124/121M	11.0	95	6.0J	8.8	28.3	3520	3197

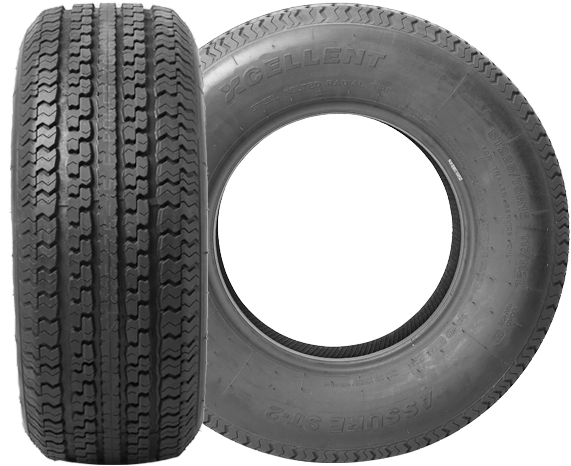

Assure ST-2

Semi-Steel ST

The XCELLENT ASSURE ST-2 is a semi-steel special trailer tire. It is dedicated to be designed with low rolling resistance and fuel economy. XCELLENT ASSURE ST-2 Radial Trailer tire can meet every requirement of your trailer demand. The full range of tires are manufactured with two full nylon cap ( except 13”) and reinforced polyester. ST235/85R16 is especially designed with three ply polyester for highest loading capacity. All skus are traditional design with full tread depth and wider footprint, enables the tire’s high speed performance and long mileage.

No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Single	Dual
1	EX0001	ST175/80R13	8PR	97/93M	9.5	65	5.0J	6.9	24.0	1610	1430
2	EX0002	ST205/75R14	8PR	105/101M	10.3	65	5.5J	7.9	26.1	2040	1820
3	EX0003	ST215/75R14	8PR	108/103M	10.3	65	6.0J	8.5	26.7	2200	1930
4	EX0004	ST205/75R15	8PR	107/102M	10.3	65	5.5J	7.9	27.1	2150	1870
5	EX0005	ST205/75R15	10PR	111/106M	10.3	80	5.5J	7.9	27.1	2400	2090
6	EX0006	ST225/75R15	8PR	113/108M	10.3	65	6.0J	8.7	28.3	2540	2200
7	EX0007	ST225/75R15	10PR	117/112M	10.3	80	6.0J	8.7	28.3	2830	2470
8	EX0008	ST235/80R16	10PR	124/120M	10.3	80	6.5J	9.3	30.7	3520	3080
9	EX0009	ST235/85R16	12PR	128/124M	10.2	95	6.5J	9.3	31.7	3960	3520
